Postprocess a Reaction-Eikonal model.

This example shows how to postprocess a full heart reaction eikonal model.

Warning

When using a standalone version of the DPF Server, you must accept the license terms. To accept these terms, you can set this environment variable:

import os
os.environ["ANSYS_DPF_ACCEPT_LA"] = "Y"

Perform the required imports

Import the required modules and set relevant paths.

from pathlib import Path

from ansys.health.heart.post.dpf_utils import EPpostprocessor

Create a postprocessor object

Note

This example assumes that you have you ran a full heart electrophysiology simulation and that the d3plot files are located in data_path.

# Import the required modules and set relevant paths.
workdir = Path.home() / "pyansys-heart" / "downloads" / "Rodero2021" / "01" / "FullHeart"

# Specify the path to the d3plot that contains the simulation results.
data_path = workdir / "simulation-EP" / "main-ep-ReactionEikonal" / "d3plot"

# Check if the file exists.
if not data_path.is_file():
    raise FileNotFoundError(f"File not found: {data_path}")

# Initialize the postprocessor.
post = EPpostprocessor(data_path)

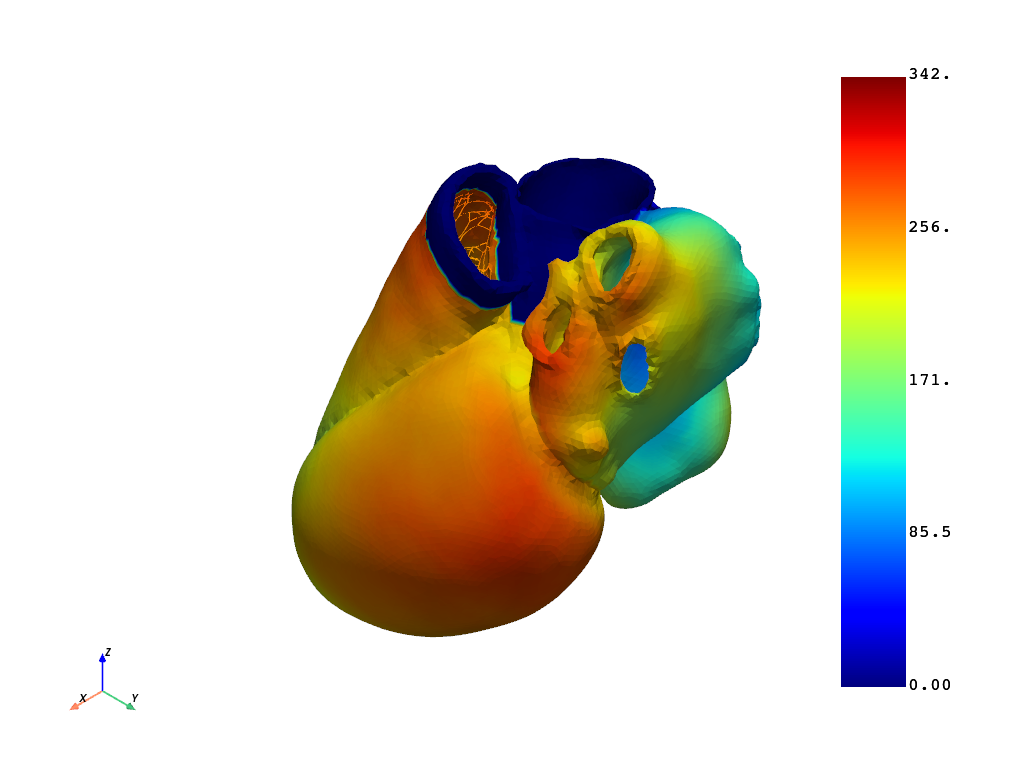

Call methods to retrieve activation time

# Get activation time of the full field at the last time step.
activation_times = post.get_activation_times()
print(activation_times.data)

activation_times.plot(show_edges=False, show_scalar_bar=True)

Static Scene

Interactive Scene

[205. 212. 207. ... 145. 147. 148.]

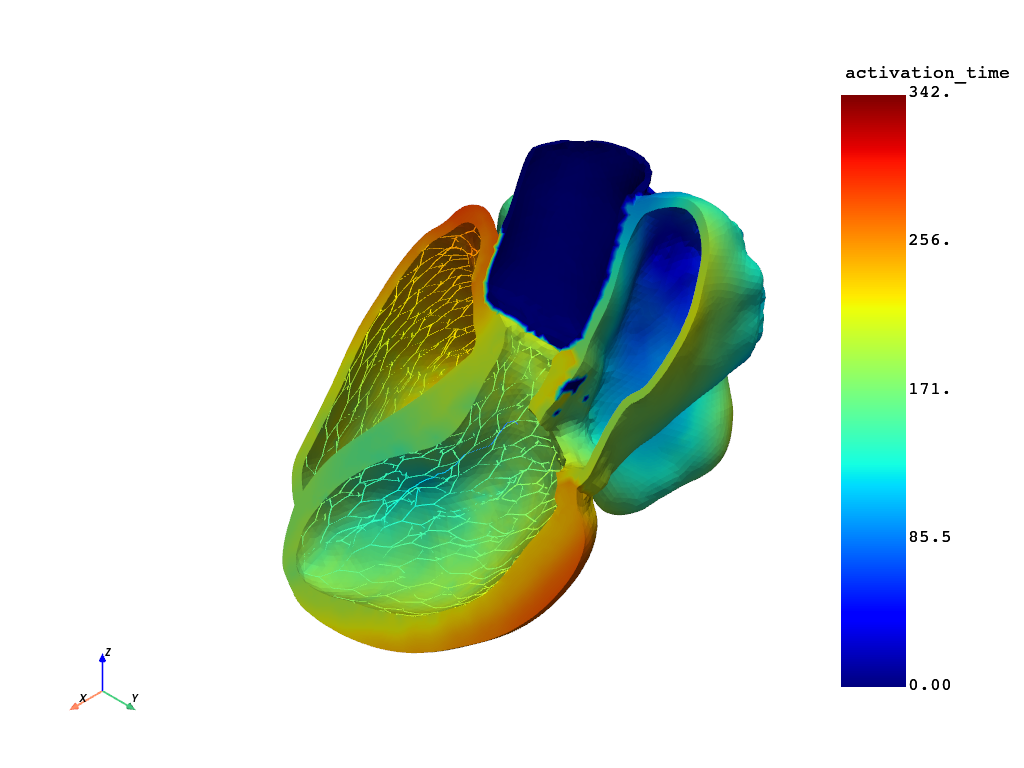

Create a clip view.

# Create a clip view of the activation time using ``pyvista``.
import pyvista as pv

# Retrieve the unstructured grid.
grid: pv.UnstructuredGrid = post.reader.model.metadata.meshed_region.grid
grid.point_data["activation_time"] = activation_times.data
grid.set_active_scalars("activation_time")

# Clip the model and plot.
grid.clip(
    normal=[0.7785200198880087, -0.027403237199259987, 0.6270212446357586],
    origin=[88.24004990770091, 54.41149629465821, 49.1801566480857],
).plot(show_scalar_bar=True)

Static Scene

Interactive Scene
